Analog Cameras
CBT3-12-R
DWC-B6263WTIR650

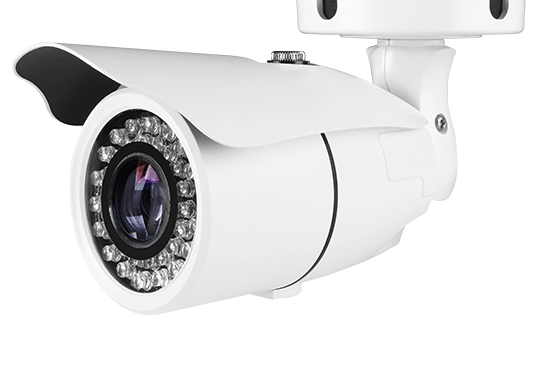

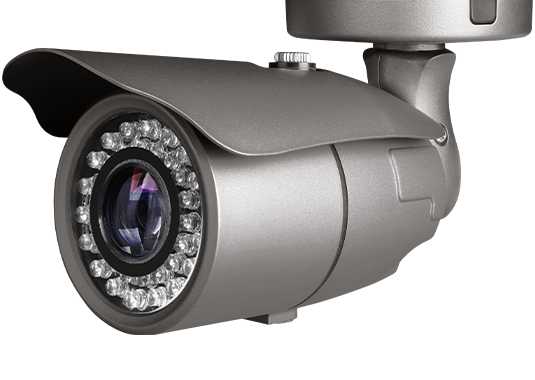

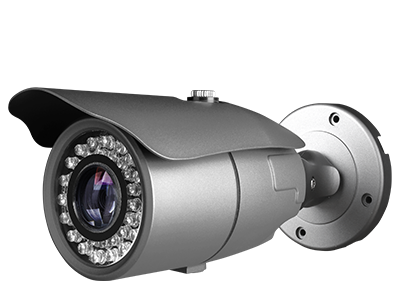

2M HD Analog IR Bullet
2 MP
Image Resolution
35 IR
IR Leds
Universal
Video Output

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Analog High Definition Universal over UTP Technology
  • Sens-up Super Low Light Technology
  • 1/3" CMOS Sensor
  • 1080P Resolution at 30fps
  • Wide Dynamic Range (WDR)
  • Varifocal P-Iris Lens from 6~50mm
  • Smart IR™ with Intelligent Camera Sync. 150ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Test Video-BNC Output
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP66 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC
  • RS485

Specifications

PDF
Video
Image Sensor
  1. 1/3”
  2. 2M
  3. CMOS
Num of Channels
1
Total Pixel 1956(H) x 1266(V)
Active Pixel 1944(H) x 1092(V)
Max Resolution 1920 X 1080
MIN. Illumination
Color(at Day) : 0.039Lux (F1.6, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output CVBS
Signal Technology Max 2M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
6~50mm
Aperture
F1.6
Lens Type Vari-Focal
IRIS Type P-IRIS
Horizontal Angle
D:102.2°, H:88°, V:47.8°(Wide) D:38°, H:33°, V:18.7°(Tele)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
LEDs 35IR
LED Distance
150ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED OFF) : 3W (250mA)
DC(LED ON) : 6W (500mA)
AC(LED OFF) : 2.7W (160mA)
AC(LED ON) : 5.5W (320mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IK Rating No
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
BT3
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
252mm
96.7mm
96.7mm
Weight
0.75kg

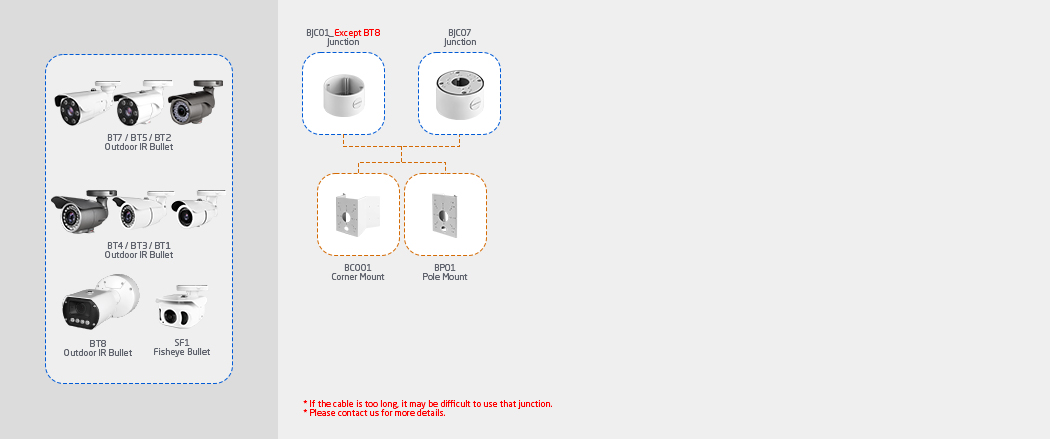

Compatible Accessories

Bracket Matching

Download

  • CBT3-12-R

    2M HD Analog IR Bullet

    Type File name Last update Download
    Drawing BT3 DRAWING.PDF 2022-08-17
    Product Image BT3_1.JPG 2022-08-17
