Network Cameras
NBI2-12-R
2M IP IR Mini Bullet
2 MP
Image Resolution
H2IR
IR Leds
Mini size
Bullet

Key Feature

  • 2MP Bullet Camera
  • Maximum resolution 1920 (horizontal) X 1080 (vertical) / 30fps
  • Horizontal angle of view 84 degrees (4.0mm) / Fixed lens option
  • Day & Night(ICR)/IR visibility distance 21 meters
  • Backlight compensation (D-WDR)
  • PoE IEEE 802.3af/Class3
  • IP67

Specifications

PDF
Video
Image Sensor
  1. 1/2.9”
  2. 2.2M
  3. CMOS
Channels
1
Total Pixel 2001(H) X 1121(V)
Max Resolution 1920(H) X 1080(V)
MIN. Illumination
0.25Lux
0Lux with IR (F2.0)
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
4.0mm
Aperture
F2.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D : 98°, H : 84°, V : 46°
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) D-WDR
Dynamic Range No
LEDs H2IR
LED Distance 75ft(23m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 1920x1080/1280x720/352x288/352x240
H.264 : 1920x1080/1280x720/352x288/352x240
MJPEG : 1920x1080/1280x720/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression No
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out No
Alarm In / Out No
Mic No
Event Trigger
Motion Alarm
Temperature Critical
Illegal Login
Schedule
Event Notification
FTP
E-Mail
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
No
SD Card Socket No
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 4.5W
  2. PoE Max 6.0W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing No
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model BI2
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
160.5mm
67.5mm
Weight
0.5kg

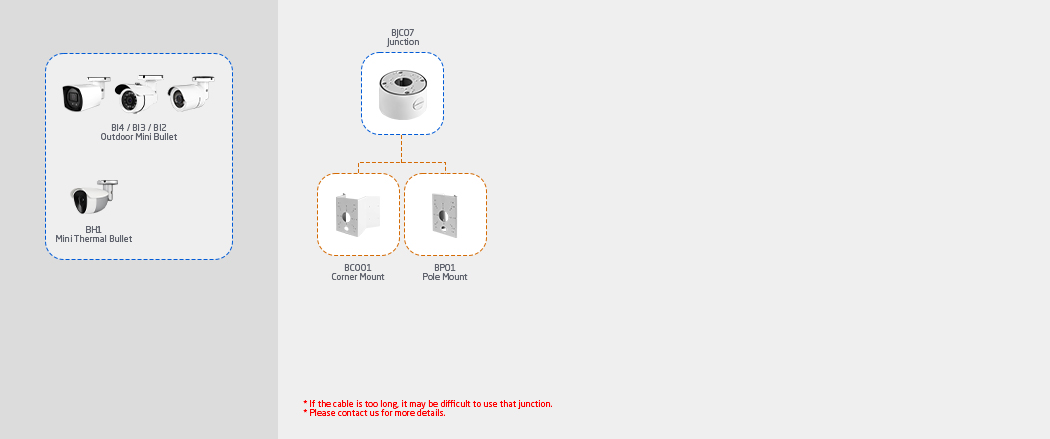

Compatible Accessories

Bracket Matching
