SMART TECHNOLOGY FOR SECURITY AND SURVEILLANCE.
Key Feature
- 5MP AI Camera
- Supports Intelligent Video Analysis Events
- Maximum Resolution 2592 (Horizontal) X 1944 (Vertical) / 30fps
- Horizontal Field of View 106 degrees (Wide) ~ 35 degrees (Zoom)
- 4x Optical Zoom
- Day & Night(ICR)/Night Vision up to 37 meters
- Backlight Compensation (WDR)
- SD/SDHC/SDXC Memory Slot
- PoE IEEE 802.3af/Class4
- IP67
Specifications
| Video | |
|---|---|
| Image Sensor |
|
| Channels |
1
|
| Total Pixel |
2608(H) X 1984(V)
|
| Max Resolution |
2592(H) X 1944(V)
|
| MIN. Illumination |
COLOR: 0.1Lux
BW: 0Lux with IR
|
| Only installer Video Output |
No
|
| S/N(signal/noise) Ratio |
50dB
|
| Scanning Mode |
Progressive Scan
|
| Lens | |
|---|---|
| Focal Length |
2.8~12mm
|
| Aperture |
F1.6
|
| Lens Type |
Motorized_Varifocal
|
| IRIS Type |
P-IRIS
|
| Horizontal Angle |
D:41°~127°, H:35°~106°, V:20°~56°
|
| Pan / Tilt / Zoom |
Zoom : X4.2 Optical
|
| Operational | |
|---|---|
| Shutter Speed |
Auto / Manual (1/3 ~ 1/100,000)
|
| Auto Gain Control (AGC) |
Auto
|
| Day & Night |
TDN (True Day & Night)
|
| Digital Noise Reduction |
3D DNR
|
| Wide Dynamic Range (WDR) |
WDR(2x)
|
| Dynamic Range |
120dB or above
|
| LEDs |
H3IR
|
| LED Distance |
120ft(37m)
|
| Privacy Zone |
Yes
|
| Function |
Motion-Detection
Mirror&Flip
|
| Intelligent Video Analytic | |
|---|---|
| AI Intelligent Video Analytic |
Yes
|
| Encoder (video & audio) | |
|---|---|
| Video Compression |
H.264
H.265
MJPEG
|
| Support Resolution |
H.265 : 2592x1944/2560x1440/1920x1080
H.264 : 2592x1944/2560x1440/1920x1080 MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240 |
| Intelligent Codec |
Yes
|
| Multiple Profile Streaming Performance |
Triple Streaming(3rd Only MJPEG)
|
| Video BitRate |
256Kbps~8Mbps
|
| Bitrate Control |
Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
|
| Video Bitrate extra comment |
Multi-rate for Preview and Recording
|
| Audio Compression |
G.711 ulaw/AAC
|
| Special Feature |
Dynamic ROI(Region of Interest)
|
| I/O & Event | |
|---|---|
| Audio In / Out |
1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
|
| Alarm In / Out |
1 Line/1 Line
|
| Mic |
No
|
| Event Trigger |
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
|
| Event Notification |
FTP
E-Mail
Alarm Out
SD Card
|
| Network | |
|---|---|
| Ethernet |
RJ45 (10/100Base-T)
|
| Protocol |
TCP/IP ICMP HTTP/S FTP DHCP DNS DDNS RTP RTSP NTP UPnP SMTP IGMP 802.1X QoS IPv4/6 UDP Bonjour SSL/TLS PPPoE SNMP WebSocket/s SRTP SFTP ONVIFONVIF
|
| Security |
HTTPS(SSL)
IP filtering
802.1x
|
| Application Programming I/F |
CGI API
ONVIF
|
| Web viewer |
MS Edge®
Google Chrome®
|
| Video management software (VMS) |
DW Spectrum® IPVMS
|
| Support languages |
English
Korean
Japanese
|
| Edge storage |
Micro SD
Micro SDHC
Micro SDXC
|
| SD Card Socket |
1
|
| Electrical | |
|---|---|
| Power Requirement |
|
| Power consumption |
|
| Environmental | |
|---|---|
| Operating Temperature |
-30℃ ~ 50℃
|
| Cold Start |
No
|
| Operating Humidity |
10-90% RH(Non-Condensing)
|
| Vandal Proof Casing |
IK10
|
| IP Rating |
IP67
|
| Other Certification |
FCC
CE
ROHS
|
| Mechanical | |
|---|---|
| Housing Model |
BT6
|
| Housing |
|
| Material |
Aluminum-Die Casting
|
| Color |
White
|
| Dimensions (W x D x H) |
197.5mm
86mm
|
| Weight |
0.97kg
|
Compatible Accessories
Download
-

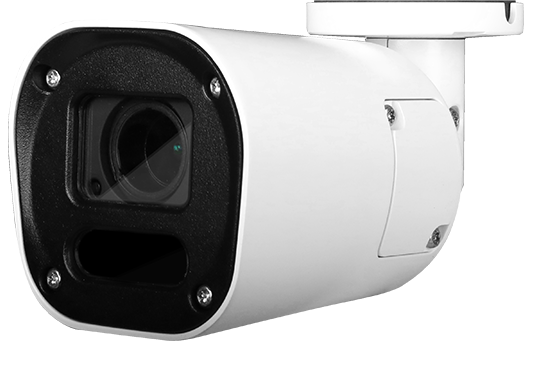

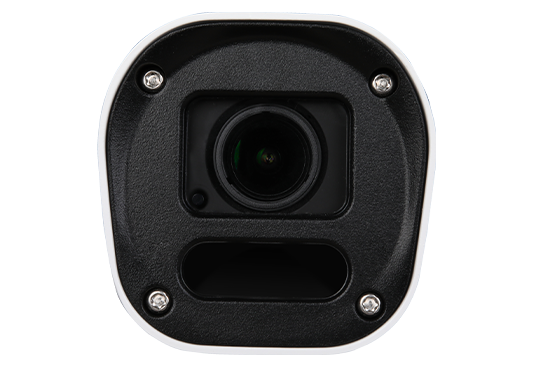

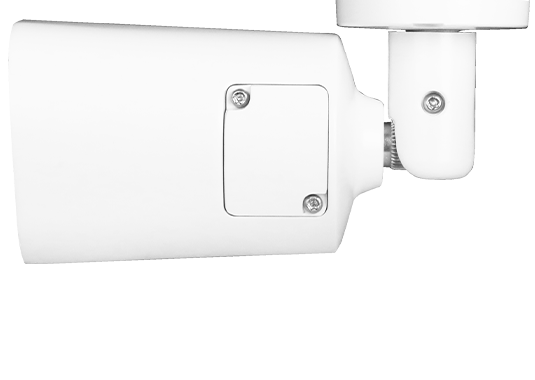

NBT6-Z5-RAI 5M IP MFZ IR Bullet
Type File name Last update Download Product Image BT6_MFZ.PNG 2023-05-23
Drawing BT6 DRAWING.PDF 2023-05-23
