Network Cameras

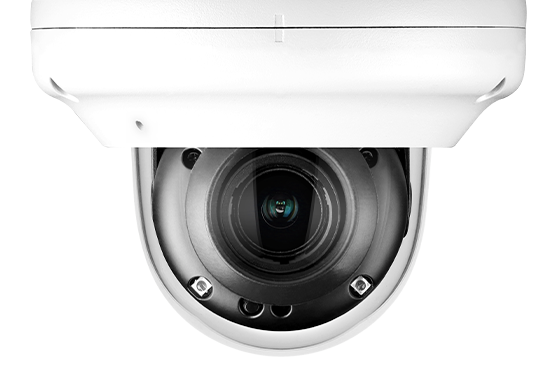

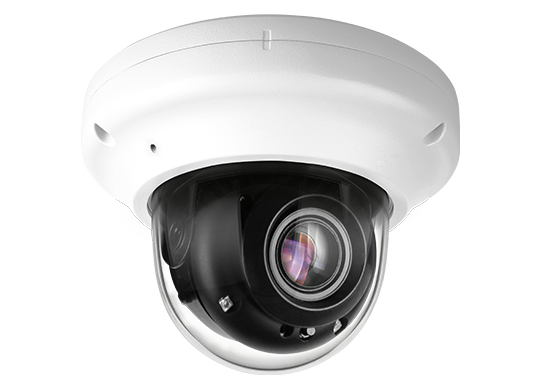

NVD13-Z5-R
AI 5M IP MFZ IR Dome
Edge based
AI camera
H2IR
IR Leds
4X
Optical Zoom

Key Feature

  • 5MP AI Camera
  • Supports Intelligent Video Analysis Events
  • Maximum Resolution 2592 (Horizontal) X 1944 (Vertical) / 30fps
  • Horizontal Field of View 106 degrees (Wide-angle) ~ 35 degrees (Zoom) / Optical 4x Zoom
  • Day & Night(ICR)/Night Vision up to 25 meters
  • Backlight Compensation (WDR)
  • SD/SDHC/SDXC Memory Slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK10
  • Built-in Microphone

Specifications

PDF
Video
Image Sensor
  1. 1/2.4"
  2. 5.17M
  3. CMOS
Channels
1
Total Pixel 2608(H) X 1984(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
COLOR: 0.1Lux
BW: 0Lux with IR
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.8~12mm
Aperture
F1.6
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:41°~127°, H:35°~106°, V:20°~56°
Pan / Tilt / Zoom
Zoom : X4.2 Optical
Operational
Shutter Speed
Auto / Manual (1/3 ~ 1/100,000)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 80ft(25m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/1920x1080
H.264 : 2592x1944/2560x1440/1920x1080
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 256Kbps~8Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw/AAC
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out Mic /1 Line Output
Alarm In / Out 1 Line/1 Line
Mic Yes
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP ICMP HTTP/S FTP DHCP DNS DDNS RTP RTSP NTP UPnP SMTP IGMP 802.1X QoS IPv4/6 UDP Bonjour SSL/TLS PPPoE SNMP WebSocket/s SRTP SFTP ONVIFONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 8.2W
  2. PoE Max 9.5W
Environmental
Operating Temperature -30℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model VD13
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
92mm
Weight
0.52kg
