NPX3-52

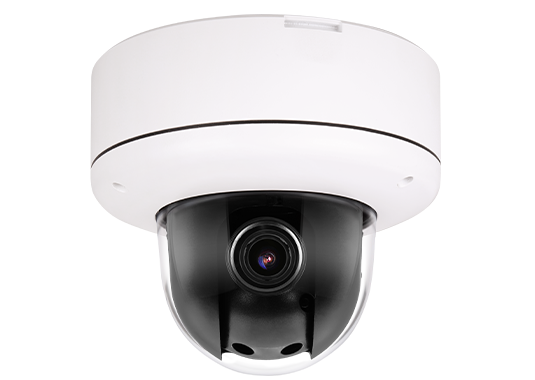

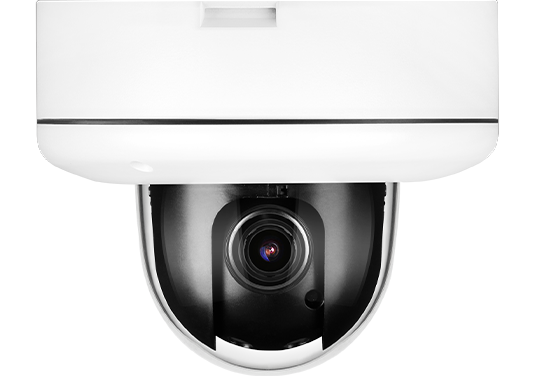

2M IP REPOSITIONING PTZ DOME
3 X
Zoom
MFZ Lens
Lens Type
PTZ
Repositioning

Key Feature

  • 2MP PTZ camera
  • Maximum resolution 1920 (horizontal) X 1080 (vertical) / 30fps
  • Horizontal angle of view 115 degrees (2.8mm) to 59 degrees (8.0mm) / MFZ lens
  • Day & Night (ICR)
  • Backlight compensation (WDR)
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP67

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 2.1M
  3. CMOS
Channels
1
Total Pixel 1945(H) X 1109(V)
Max Resolution 1920(H) X 1080(V)
MIN. Illumination
COLOR: 0.03Lux
BW: 0.006
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.8~8mm
Aperture
F1.6
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:68.3°~131.6°, H:59.3°~114.7°, V:33.2°~61.2°
Pan / Tilt / Zoom
Pan: 360°
Tilt : 90°
Zoom : X2.8
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs Non-IR
LED Distance No
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 1920x1080/1280x720/640x480/352x288/352x240
H.264 : 1920x1080/1280x720/640x480/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/640x480/768x432/704x576/704x480/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
Smart LBR
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3at
  4. Class4
Power consumption
  1. DC Max 11.4W
  2. PoE Max 15.36W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing No
IP Rating IP67
Other Certification
FCC
CE
ROHS
KC
Mechanical
Housing Model PX3
Housing
  1. Outdoor
  2. Dome
    PTZ
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
116mm
Weight
1kg
