Analog Cameras
CBT3-25-R

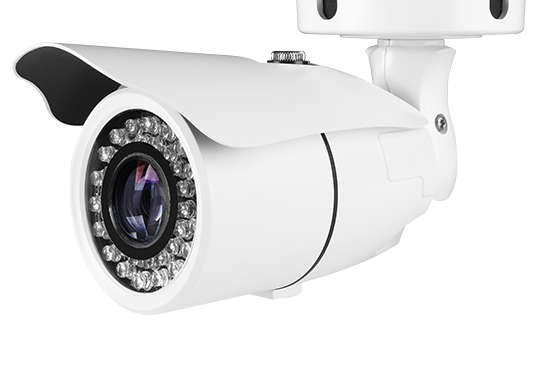

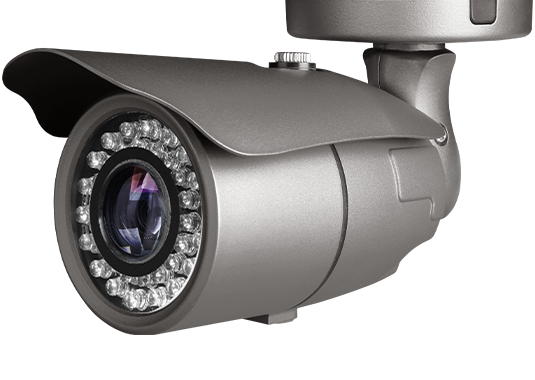

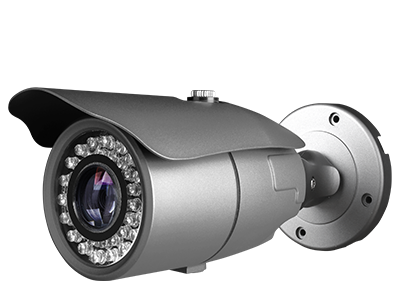

DWC-B6563WTIR650
5M HD Analog IR Bullet
5 MP
Image Resolution
35 IR
IR Leds
Universal
Video Output

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Analog High Definition Universal over UTP Technology
  • Sens-up Super Low Light Technology
  • 1/2.8" CMOS Sensor
  • Max 1944P Resolution at 12.5/20fps
  • Wide Dynamic Range (WDR)
  • Varifocal P-Iris Lens from 6~50mm
  • Smart IR™ with Intelligent Camera Sync. 150ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Test Video-BNC Output
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP66 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC
  • RS485

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5M
  3. CMOS
Num of Channels
1
Total Pixel 2704(H) x 2104(V)
Active Pixel 2608(H) x 1960(V)
Max Resolution 2592 x 1944
MIN. Illumination
Color(at Day) : 0.1Lux (F1.6, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
HD-A
HD-TVI
HD-CVI
CVBS
Only installer Video Output CVBS
Signal Technology Max 5M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
6~50mm
Aperture
F1.6
Lens Type Vari-Focal
IRIS Type P-IRIS
Horizontal Angle
D:59.4°, H:50.6°, V:27.4°(Wide) D:7.1°, H:6.2°, V:3.5°(Tele)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
LEDs 35IR
LED Distance
150ft
Gamma
0.45
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out 1[1.0Vms, 3K ohm]/1
Alarm In / Out 1/1
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED OFF) : 3.3W (275mA)
DC(LED ON) : 6.2W (531mA)
AC(LED OFF) : 2.86W (220mA)
AC(LED ON) : 5.6W (390mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IK Rating No
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
BT3
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
252mm
96.7mm
96.7mm
Weight
0.75kg

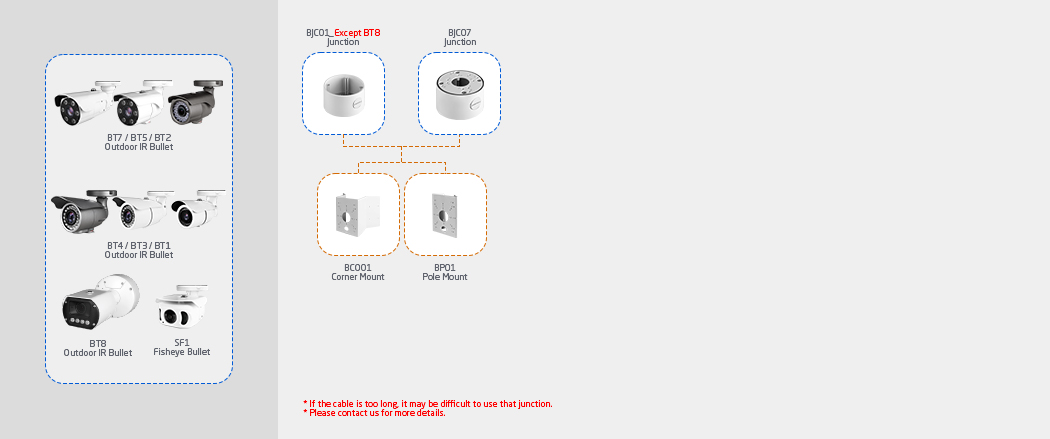

Compatible Accessories

Bracket Matching
