CBT1-28-RS
DWC-B6853WTIR

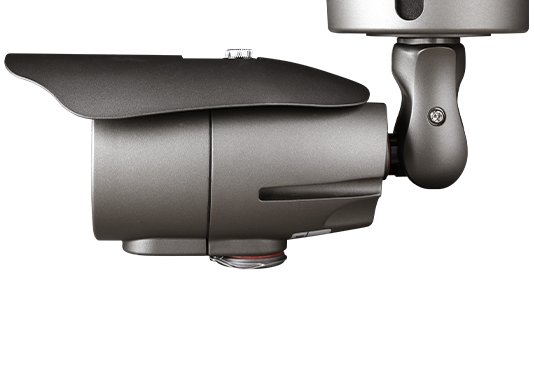

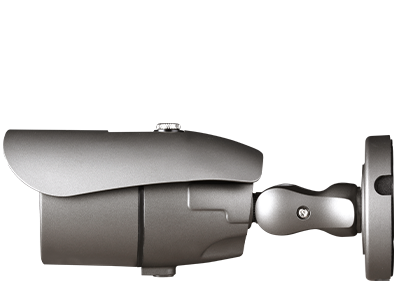

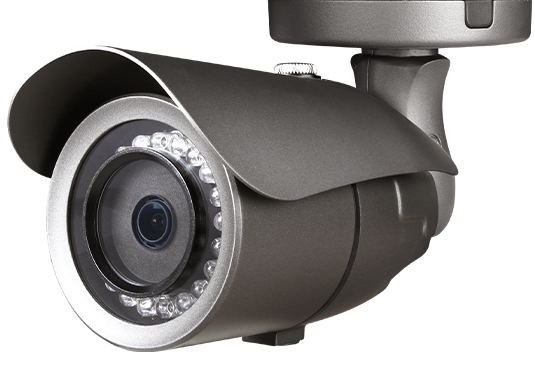

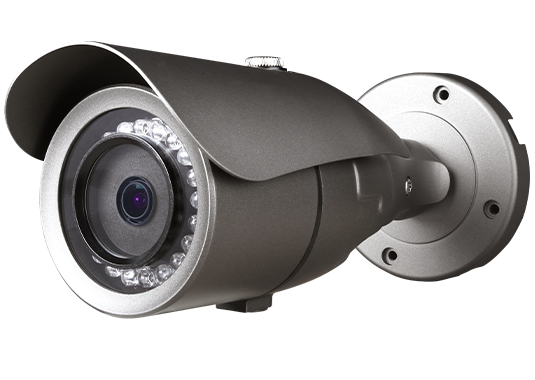

8M HD Analog IR Bullet
8 MP
Image Resolution
20 IR
IR Leds
Universal
Video Output

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Starlight Super Low Light Technology
  • 1/1.8" CMOS Sensor
  • Max 2160P Resolution at 15/12.5fps
  • Wide Dynamic Range (WDR)
  • Smart IR™ with Intelligent Camera Sync. 100ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP67 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 8M
  3. CMOS
Num of Channels
1
Total Pixel 3864(H) x 2228(V)
Active Pixel 3864(H) x 2176(V)
Max Resolution 3840(H) x 2160(V)
MIN. Illumination
Color(at Day) : 0.1Lux (F1.6, 30IRE)
B/W(at Night) : 0Lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output CVBS
Signal Technology Max 8.0 Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
2.8mm
4.0mm
6.0mm
Aperture
F1.6
Lens Type Fixed
IRIS Type Auto Exposure
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) LINE WDR
Dynamic Range 120dB or above
LEDs 20IR
LED Distance
100ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
Electrical
Power Requirement DC12V Voltage
  1. DC12V
Power consumption
DC(LED OFF) : 3W (250mA)
DC(LED ON) : 4.2W (352mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
BT1
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
224.5mm
96.7mm
96.7mm
Weight
0.65

Download

  • CBT1-28-RS

    8M HD Analog IR Bullet

    Type File name Last update Download
    Drawing BT1 DRAWING.PDF 2022-08-17
    Product Image BT1_3.JPG 2022-08-17
