Analog Cameras
CBT1-25-R
DWC-B6563WTIR

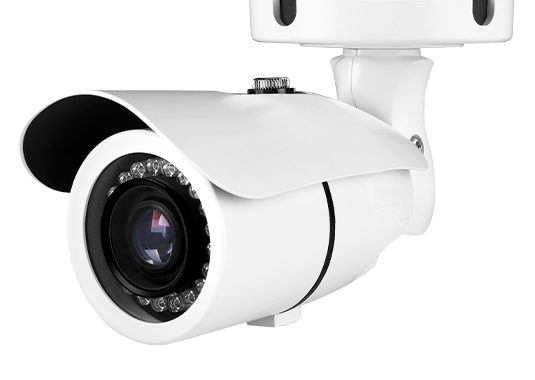

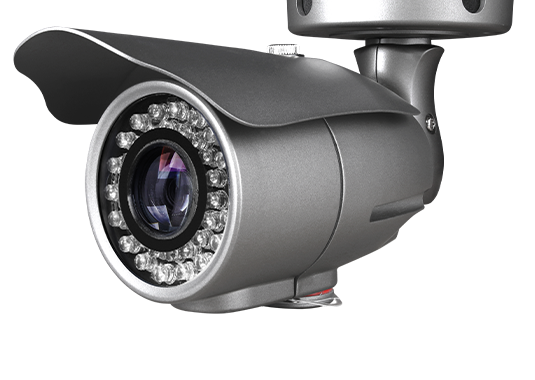

5M HD Analog IR Bullet
5 MP
Image Resolution
20 IR
IR Leds
Universal
Video Output

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Analog High Definition Universal over UTP Technology
  • Sens-up Super Low Light Technology
  • 1/2.8" CMOS Sensor
  • Max 1944P Resolution at 12.5/20fps
  • Wide Dynamic Range (WDR)
  • Varifocal P-Iris Lens from 2.7~13.5mm
  • Smart IR™ with Intelligent Camera Sync. 100ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Test Video-BNC Output
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP66 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC
  • RS485

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5M
  3. CMOS
Num of Channels
1
Total Pixel 2704(H) x 2104(V)
Active Pixel 2608(H) x 1960(V)
Max Resolution 2592 x 1944
MIN. Illumination
Color(at Day) : 0.08Lux (F1.4, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output CVBS
Signal Technology Max 5M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Vari-Focal
IRIS Type P-IRIS
Horizontal Angle
D:136°, H:122.4°, V:73.9°(Wide) D:40.5°, H:40.8°, V:23.3°(Tele)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
LEDs 20IR
LED Distance
100ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out 0/1
RS485 PELCO D
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED OFF) : 3.3W (275mA)
DC(LED ON) : 5W (420mA)
AC(LED OFF) : 2.86W (220mA)
AC(LED ON) : 4.4W (310mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Operating Humidity Less than 90%(Non-Condensing)
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
BT1
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
224.5mm
96.7mm
96.7mm
Weight
0.65kg

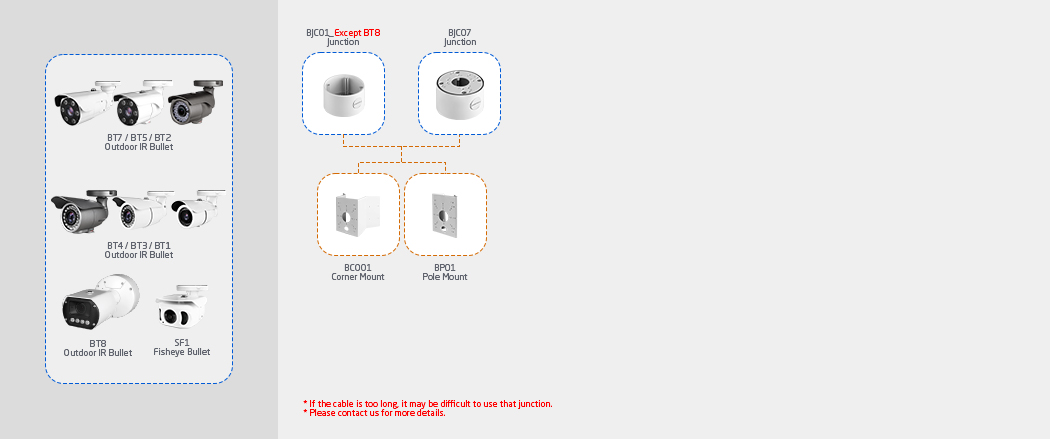

Compatible Accessories

Bracket Matching
