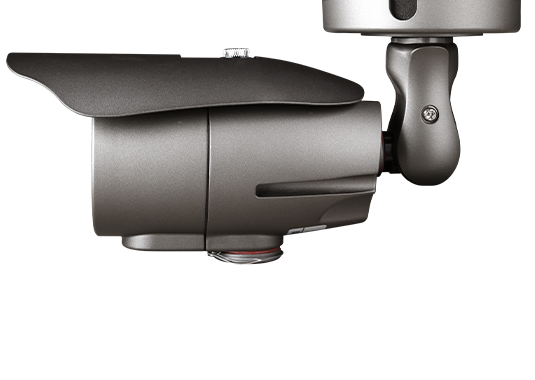

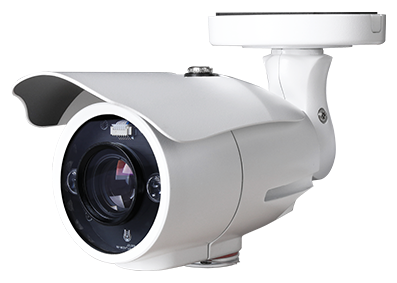

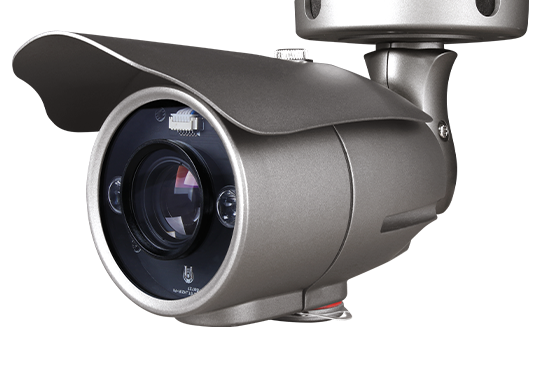

CBT4-12-RL
DWC-LPR650U
2M HD Analog LPR IR Bullet
2 MP
Image Resolution
LPR
Special Camera
H2IR
IR Leds

Key Feature

Specifications

PDF
Video
Image Sensor
  1. 1/3”
  2. 2M
  3. CMOS
Num of Channels
1
Total Pixel 1956(H) x 1266(V)
Active Pixel 1944(H) x 1092(V)
Max Resolution 1920 X 1080
MIN. Illumination
B/W(All Day) : 0 lux(With IR)
Video Output
HD-A
HD-TVI
HD-CVI
CVBS
Only installer Video Output CVBS
Signal Technology Max 2M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
6~50mm
Aperture
F1.6
Lens Type Vari-Focal
IRIS Type P-IRIS
Horizontal Angle
D:60.6°, H:51.6°, V:28.1°(Wide) D:7.4°, H:6.3°, V:3.7°(Tele)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night No
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) No
Dynamic Range No
LEDs H2IR
LED Distance
60ft
Gamma
0.75
Function
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out 1[1.0Vms, 3K ohm]/1
Alarm In / Out 1/1
RS485 PELCO D
UTC Built-in UTC
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED ON) : 6.12W
AC(LED ON) : 5.7W
Environmental
Operating Temperature -20℃ ~ 50℃
Operating Humidity Less than 90%(Non-Condensing)
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
BT4
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
264mm
96.7mm
96.7mm
Weight
0.8kg

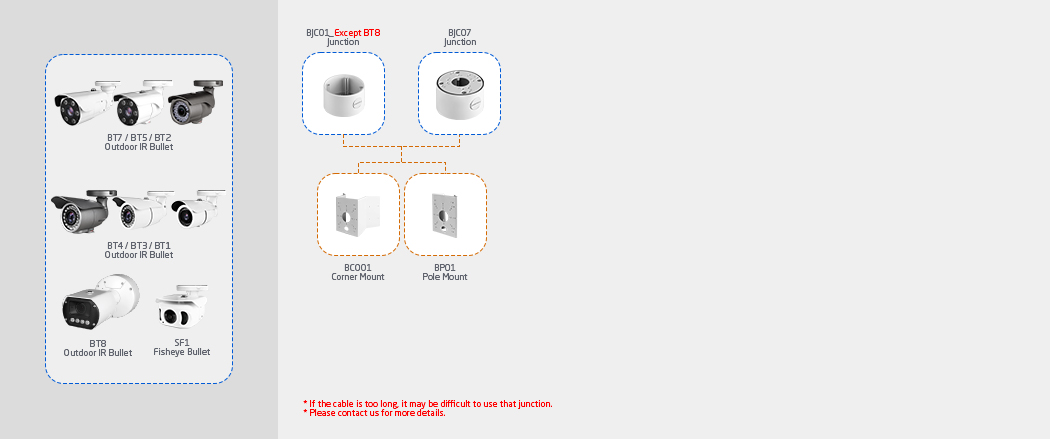

Compatible Accessories

Bracket Matching

Download

  • CBT4-12-RL

    2M HD Analog LPR IR Bullet

    Type File name Last update Download
    Drawing BT4_LPR DRAWING.PDF 2022-08-24
    Product Image BT4_LPR.JPG 2022-08-17
