Analog Cameras
CBI2-25-R
DWC-B7553WTIR

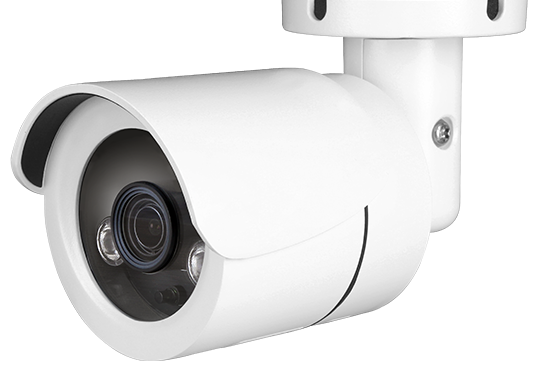

5M HD Analog IR Mini Bullet
5MP
Image Resolution
H2IR
IR Leds
Mini size
Case Type

Key Feature

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5M
  3. CMOS
Num of Channels
1
Total Pixel 2704(H) x 2104(V)
Active Pixel 2608(H) x 1960(V)
Max Resolution 2592 x 1944
MIN. Illumination
Color(at Day) : 0.16Lux (F2.0, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output No
Signal Technology Max 5M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
4.0mm
Aperture
F2.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D:106°, H:82°, V:60°
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
LEDs H2IR
LED Distance
70ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V Voltage
  1. DC12V
Power consumption
DC(LED OFF) : 2W (176mA)
DC(LED ON) : 3.9W (333mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
BI2
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting

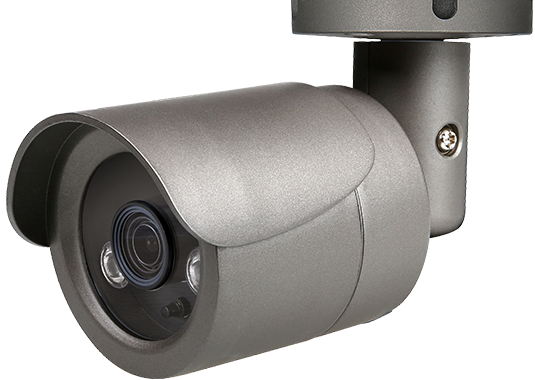

Color Dark Gray
Dimensions (W x D x H)
163mm
67.5mm
Weight
0.44kg

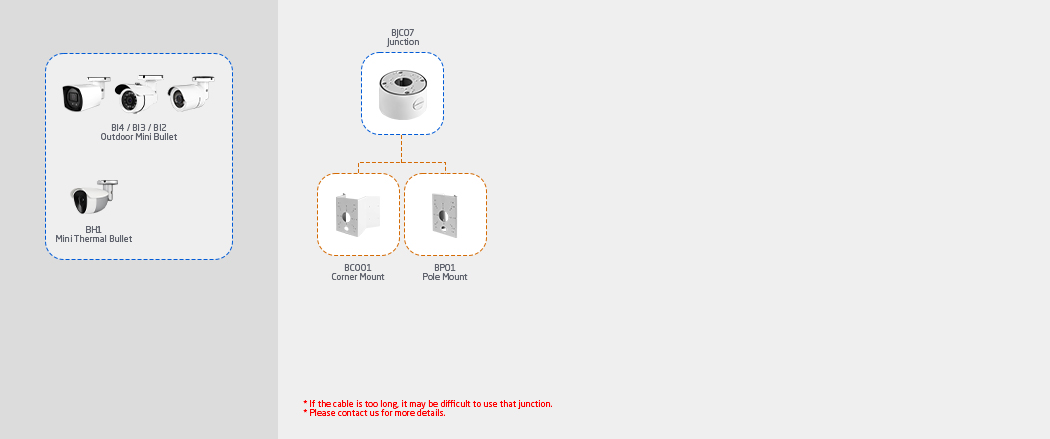

Compatible Accessories

Bracket Matching

Download

  • CBI2-25-R

    5M HD Analog IR Mini Bullet

    Type File name Last update Download
    Drawing BI2 DRAWING.PDF 2022-08-17
    Product Image BI2.PNG 2022-08-17
