Analog Cameras
CVD7-25

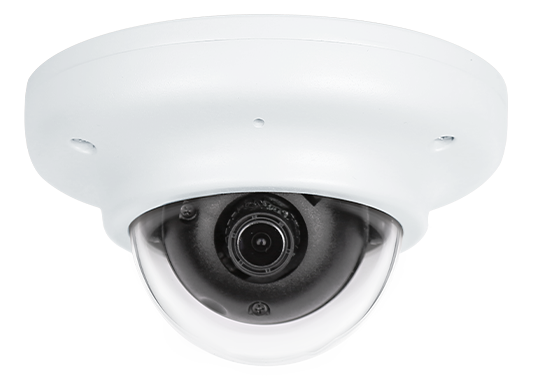

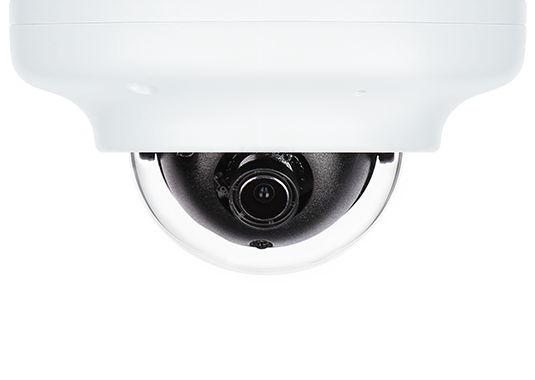

5M HD Analog Mini Outdoor Dome
5MP
Image Resolution
Non IR
IR LED
Mini size
Case Type

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Sens-up Super Low Light Technology
  • 1/2.8" CMOS Sensor
  • Max 1944P Resolution at 12.5/20fps
  • Wide Dynamic Range (WDR)
  • Board Fixed type Lens
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP66 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5M
  3. CMOS
Num of Channels
1
Total Pixel 2704(H) x 2104(V)
Active Pixel 2608(H) x 1960(V)
Max Resolution 2592 x 1944
MIN. Illumination
Color(at Day) : 0.16Lux (F2.0, 30IRE)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output CVBS
Signal Technology Max 5M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
2.8mm
4.0mm
Aperture
F2.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
2.8mm (D:126°, H:103°, V:78°)/ 4.0mm (D:106°, H:82°, V:60°) 4.0mm (D:106°, H:82°, V:60°)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
LEDs H2IR
LED Distance
50ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V Voltage
  1. DC12V
Power consumption
DC(LED OFF) : 2W (176mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IK Rating IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
VD7
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
105mm
60.7mm
Weight
0.35

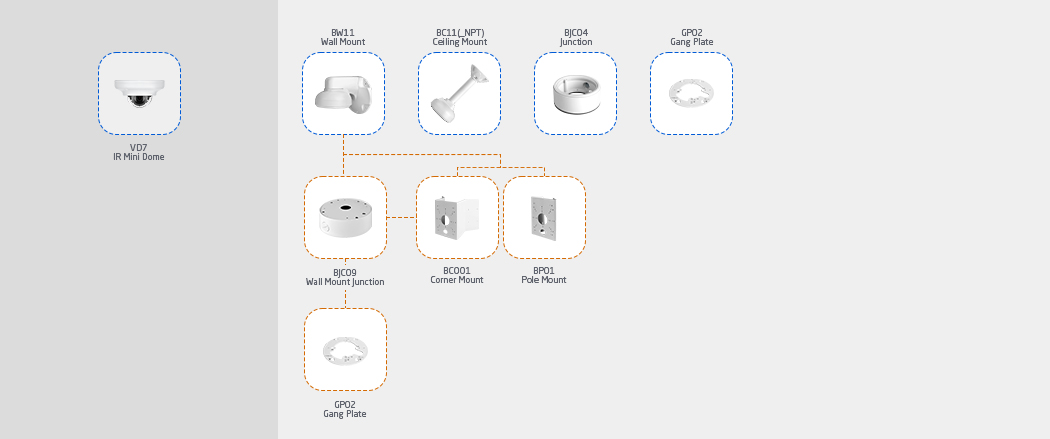

Compatible Accessories

Bracket Matching

Download

  • CVD7-25

    5M HD Analog Mini Outdoor Dome

    Type File name Last update Download
    Drawing VD7 DRAWING.PDF 2022-08-17
    Product Image VD7_NONIR_S_2.PNG 2022-08-17
