Analog Cameras
CVD2-28-RS
DWC-VA883WTIR

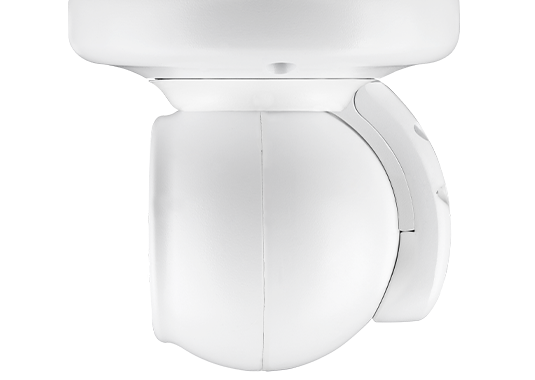

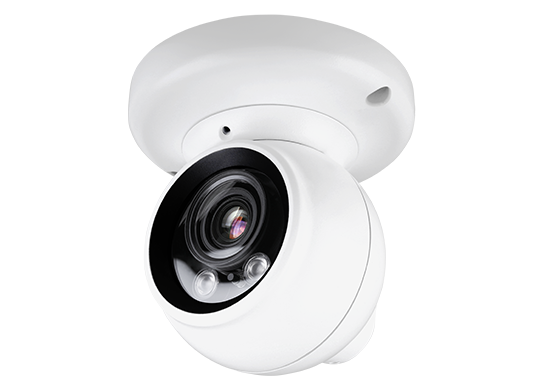

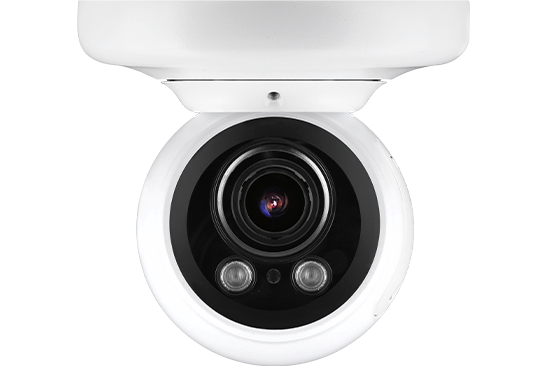

8M HD Analog IR Turret
8 MP
Image Resolution
H2IR
IR Leds
Bubble Free
Case Type

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Starlight Super Low Light Technology
  • 1/1.8" CMOS Sensor
  • Max 2160P Resolution at 15/12.5fps
  • Wide Dynamic Range (WDR)
  • MFZ P-Iris Lens from 3.6~10mm
  • Smart IR™ with Intelligent Camera Sync. 80ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP67 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC

Specifications

PDF
Video
Image Sensor
  1. 1/1.8”
  2. 8M
  3. CMOS
Num of Channels
1
Total Pixel 3952(H) x 2320(V)
Active Pixel 3864(H) x 2176(V)
Max Resolution 3840(H) x 2160(V)
MIN. Illumination
Color(at Day) : 0.09Lux (F1.5, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output No
Signal Technology Max 8.0 Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
3.6~10mm
Aperture
F1.5
Lens Type Motorized
IRIS Type P-IRIS
Horizontal Angle
D:112.9°, H:98.4°, V:54.6°(Wide) D:52.3°, H:45.7°, V:25.9°(Tele)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) LINE WDR
Dynamic Range 120dB or above
LEDs H2IR
LED Distance
80ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED OFF) : 5.517W (460mA)
DC(LED ON) : 8.98W (748mA)
AC(LED OFF) : 5.06W (358mA)
AC(LED ON) : 8.03W (552mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IK Rating IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
VD2
Housing
  1. Outdoor
  2. Turret
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
122mm
Weight
0.51

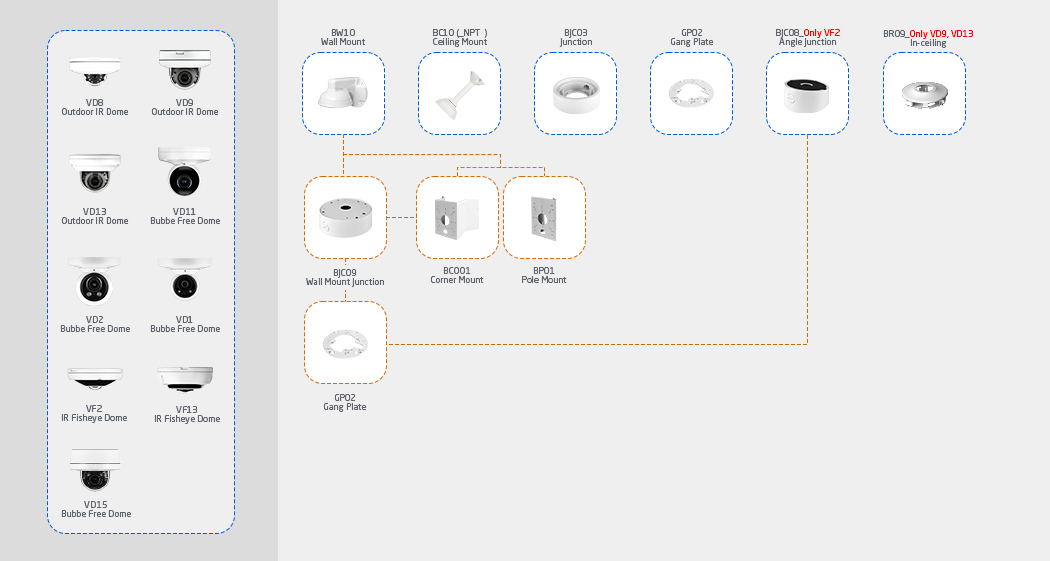

Compatible Accessories

Bracket Matching

Download

  • CVD2-28-RS

    8M HD Analog IR Turret

    Type File name Last update Download
    Drawing VD2 DRAWING.PDF 2022-08-17
    Product Image NVD2-MFZ.JPG 2022-08-17
