Network Cameras
NBH1-50 (200)

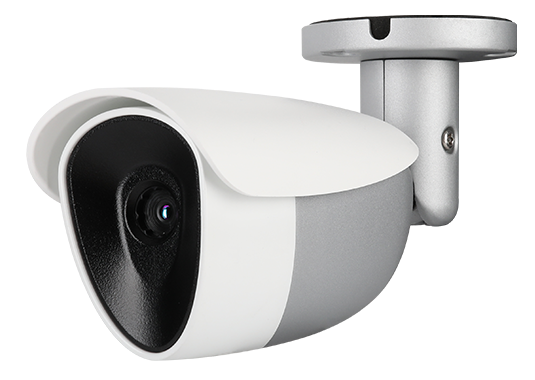

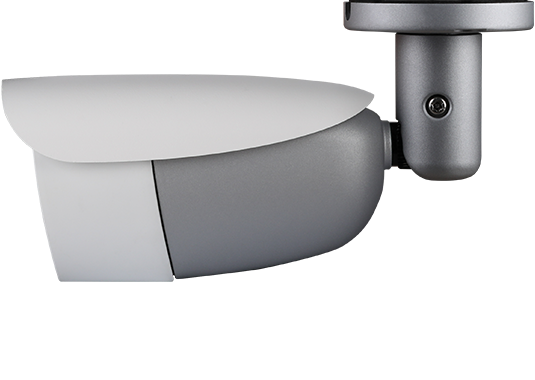

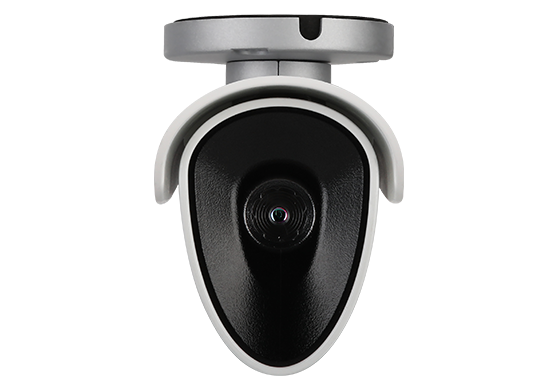

IP Thermal Mini Bullet
Mini size
Thermal Bullet
IP66 rated
Compliance
-40 °C
Temperature(min)

Key Feature

  • VCA Advanced Features
  • VCA Basic Features
  • Local SD Card Backup
  • ROI(Region of Interest)
  • Various Web Plug-in
  • Smart AVC

Specifications

PDF
Video
Image Sensor
  1. 200(H) X 150(V)
  2. CMOS
Channels
1
Total Pixel 200(H) X 150(V)
Max Resolution 640(H) X 480(V)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
4.0mm
Aperture
F1.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
H:35°, V:26°
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Auto Gain Control (AGC) Auto
Day & Night No
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) No
Dynamic Range No
LED Distance No
Privacy Zone Yes
Function
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 640x480/320x240
H.264 : 640x480/320x240
MJPEG : 640x480/320x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 8.6W(12VDC 0.72A)
  2. PoE Max 11.9W(48VDC 0.25A)
Environmental
Operating Temperature -40℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing No
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model BH1
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
210mm
74mm
Weight
0.61kg

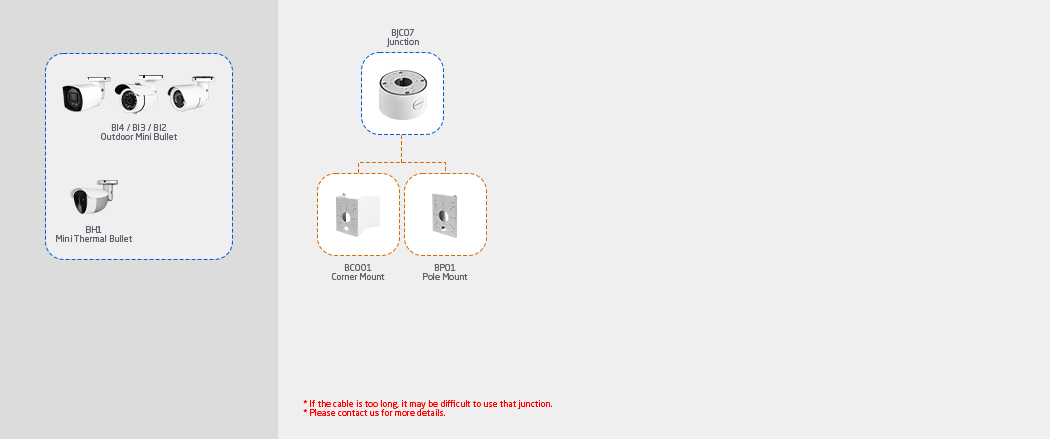

Compatible Accessories

Bracket Matching

Download

  • NBH1-50 (200)

    IP Thermal Mini Bullet

    Type File name Last update Download
    Product Image BH1.JPG 2022-07-04
    Drawing BH1 DRAWING.PDF 2022-07-04
    Quick Guide QUICK_NBH1-50.PDF 2022-07-04
