Network Cameras

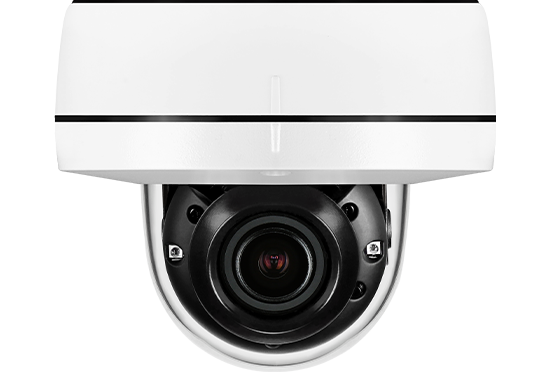

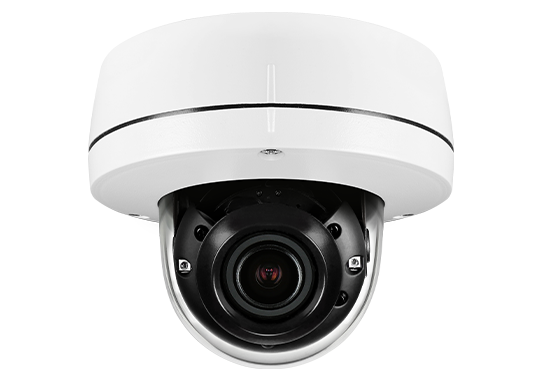

NVD15-72-RH
AI 2M IP MFZ IR HDMI Flat Dome
HDMI
2MP Resolution
H2IR
IR Leds
5X
Optical Zoom

Key Feature

  • 2MP AI HDMI Camera
  • Supports Intelligent Video Analysis Events (Line Crossing, Intrusion, Queue Management, etc.)
  • Maximum Resolution 1920 (Horizontal) X 1080 (Vertical) / 30fps
  • Horizontal Field of View 108 degrees (Wide) ~ 34 degrees (Zoom) / 5x Optical Zoom
  • Day & Night(ICR)/IR Visibility up to 25 meters
  • Backlight Compensation (WDR)
  • SD/SDHC/SDXC Memory Slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK10

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 2.1M
  3. CMOS
Channels
1
Total Pixel 1945(H) X 1109(V)
Max Resolution 1920(H) X 1080(V)
MIN. Illumination
COLOR: 0.02Lux
COLOR: 0Lux with IR
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:39.1°~124.3°, H:34.1°~107.9°, V:19.1°~57.0°
Pan / Tilt / Zoom
Zoom : X5 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 80ft(25m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
VCA Pro AI
Intrusion Detection
Zones&lines
Tamper Detection
Appear Filter
Disappear Filter
Dwell Filter
Enter Filter
Exit Filter
Stopped Filter
Counting
Counting Lines
Object Color
Direction Filter
Logical Rules
Tailgating Filter
DL People Tracker
DL Object Tracker
Metadata
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 1920x1080/1280x720/704x576/704x480/640x480/352x288/352x240
H.264 : 1920x1080/1280x720/704x576/704x480/640x480/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/640x480/768x432/704x576/704x480/352x288/352x240

HDMI :
1920x1080(Full-HD)
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 8.4W
  2. PoE Max 11.5W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
KC
Mechanical
Housing Model VD15
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
103mm
Weight
0.58kg

Compatible Accessories

Bracket Matching
