Network Cameras

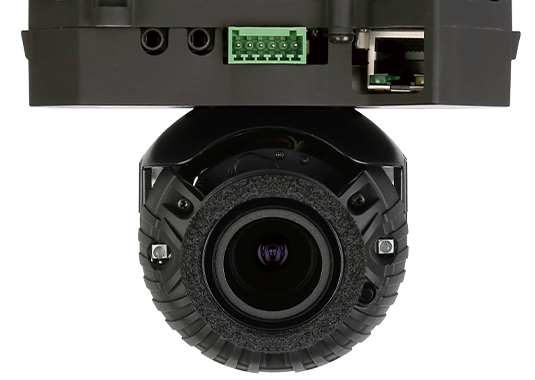

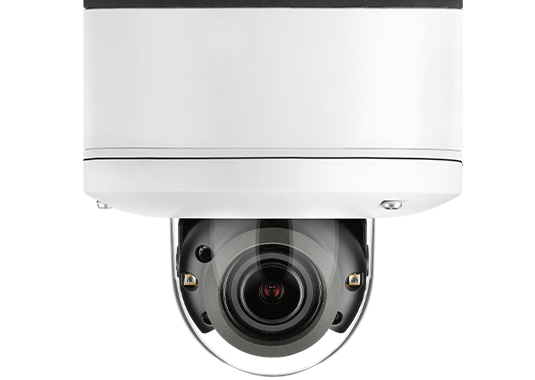

NNK6-44-RS
4M IP MFZ IR Vandal Dome
5 MP
Image Resolution
H2IR
IR Leds
Cold Start
Temperature

Key Feature

  • 4MP camera
  • 1/1.8" high sensitivity sensor
  • Maximum resolution 2688 (horizontal) X 1520 (vertical) / 30fps
  • Horizontal angle of view 90.5 degrees (wide angle) to 45.1 degrees (zoom) / Optical 2.7x
  • Day & Night (ICR) / IR reach distance 21 meters
  • Backlight compensation (WDR)
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK10

Specifications

PDF
Video
Image Sensor
  1. 1/1.8”
  2. 4.53M
  3. CMOS
Total Pixel 2781(H) X 1632(V)
Max Resolution 2688(H) X 1520(V)
MIN. Illumination
0.024Lux
0Lux with IR (F1.5)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
3.6-10mm
Aperture
F1.5
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:51.5°~104.6°, H:45.1°~90.5°, V:25.3°~54.3°
Pan / Tilt / Zoom
Pan:
Tilt :
Zoom : X2.7 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 70ft(22m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2688x1520/2304x1296/1920x1080/1280x720/704x480/640x480/352x288/352x240
H.264 : 2688x1520/2304x1296/1920x1080/1280x720/704x480/640x480/352x288/352x240
MJPEG : 1920X1080/1280x720/800x600/768x432/704x576/704x480/640x480/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 11.3W
  2. PoE Max 14.9W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start -40℃
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP68
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model NK6
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
139mm
125.4mm
Weight
1.25kg

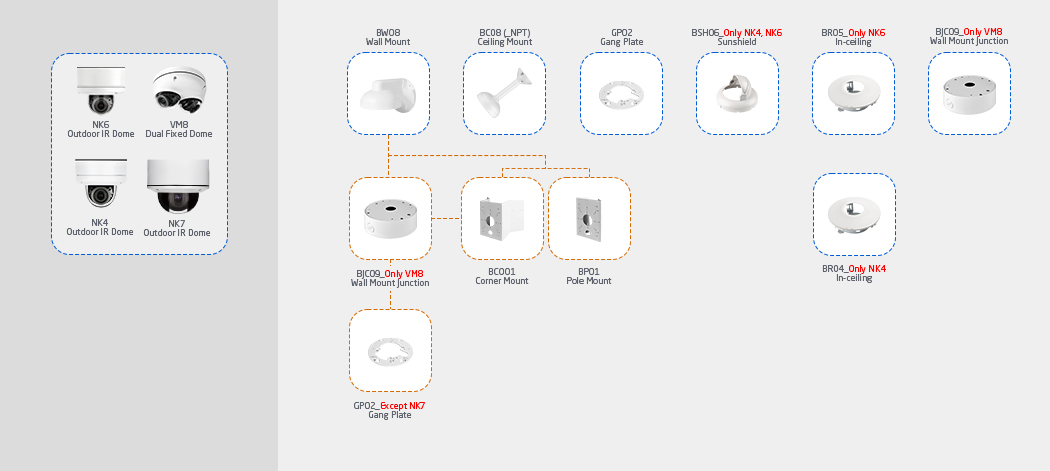

Compatible Accessories

Bracket Matching

Download

  • NNK6-44-RS

    4M IP MFZ IR Vandal Dome

    Type File name Last update Download
    Drawing NK6 DRAWING.PDF 2022-11-14
    Product Image NK6.JPG 2022-11-14
