Network Cameras
NVD7-22-R

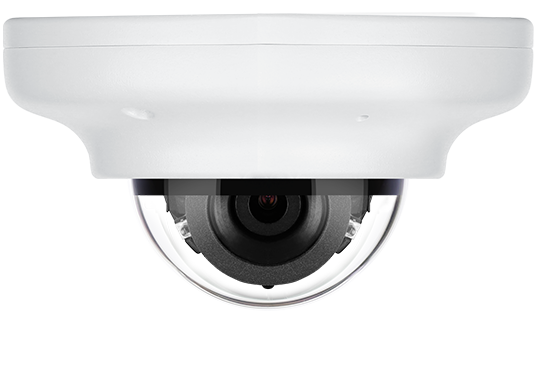

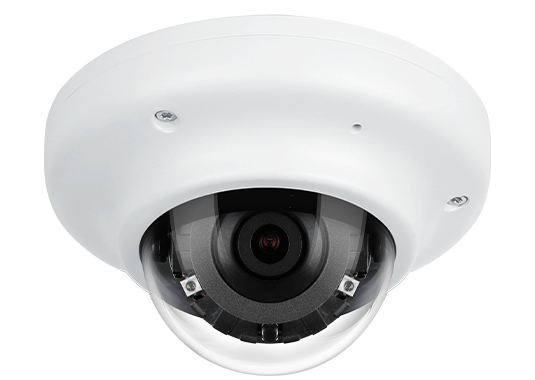

DWC-MPV72Wi4TW
2M IP IR Mini Dome
2 MP
Image Resolution
H2IR
IR Leds
Mini size
Case Type

Key Feature

  • 2MP miniature camera
  • Maximum resolution 1920 (horizontal) X 1080 (vertical) / 30fps
  • Horizontal field of view 111 degrees (2.8mm), 86 degrees (4.0mm), 55 degrees (6.0mm), 40 degrees (8.0mm) / Fixed lens selection
  • Day & Night (ICR) / IR visibility distance 19 meters
  • Backlight compensation (WDR)
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK10

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 2.1M
  3. CMOS
Channels
1
Total Pixel 1945(H) X 1109(V)
Max Resolution 1920(H) X 1080(V)
MIN. Illumination
2.8mm : 0.05Lux, 0Lux with IR(F2.0) | 4mm : 0.09Lux, 0Lux with IR (F2.6)
mm : 0.05Lux, 0Lux with IR (F2.0) | 8mm : 0.03Lux, 0Lux with IR (F1.6)
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.8mm
4.0mm
6.0mm
8.0mm
Aperture
2.8mm, F2.0 | 4.0mm, F2.6 | 6.0mm, F2.0 | 8.0mm, F1.6
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D:128°, H:111°, V:62° (2.8mm) D:120°, H:86°, V:46° (4mm) D:64°, H:55°, V:30° (6mm) D:47°, H:40°, V:22° (8mm)
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 60ft(18m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 1920x1080/1280x720/704x576/704x480/640x480/352x288/352x240
H.264 : 1920x1080/1280x720/704x576/704x480/640x480/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
Smart LBR
I/O & Event
Audio In / Out Mic / No
Alarm In / Out No
Mic Yes
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Event Notification
FTP
E-Mail
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class2
Power consumption
  1. DC Max 3.7W
  2. PoE Max 5.5W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
Mechanical
Housing Model VD7
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
105mm
60.7mm
Weight
0.36kg

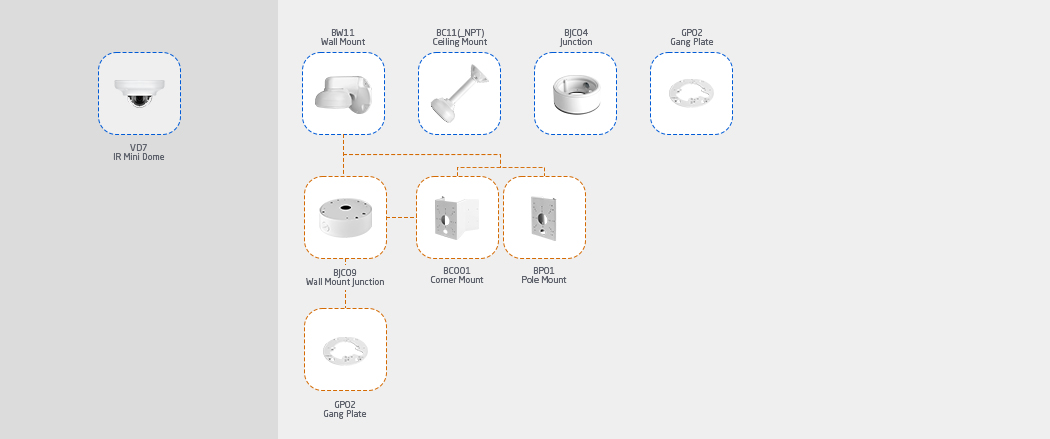

Compatible Accessories

Bracket Matching
