NVD2-55-R

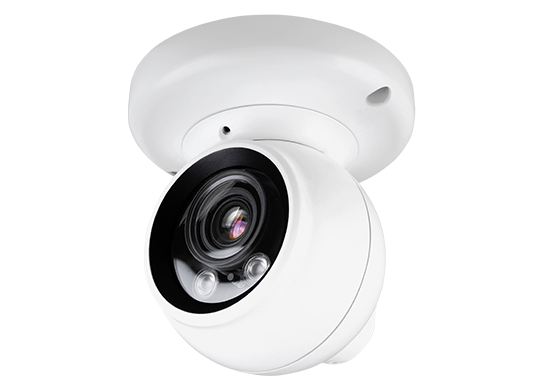

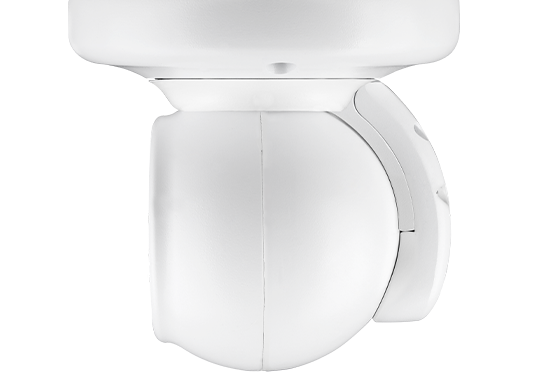

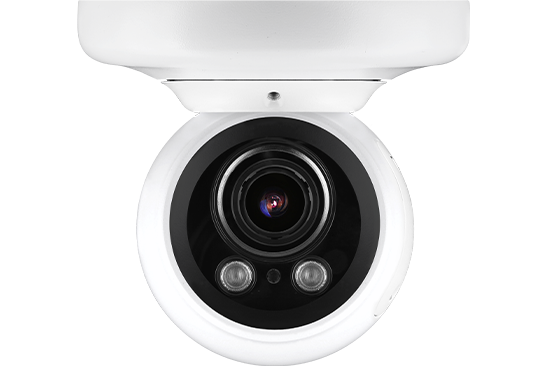

DWC-MPVA5WiAT
5M IP MFZ IR Turret
5 MP
Image Resolution
H2IR
IR Leds
Bubble Free
Case Type

Key Feature

  • 5MP camera
  • Maximum resolution 2592 (horizontal) X 1944 (vertical) / 30fps
  • Horizontal angle of view 95 degrees (wide angle) to 31 degrees (zoom) / Optical 5x
  • Day & Night (ICR) / IR reach distance 21 meters
  • Backlight compensation (WDR)
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK10

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.69M
  3. CMOS
Channels
1
Total Pixel 2704(H) X 2104(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
COLOR: 0.08Lux
BW: 0Lux with IR
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D : 39°~109°｜H : 31°~85°｜V : 24°~62°
Pan / Tilt / Zoom
Zoom : X5 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 70ft(22m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/1920x1080/704x576/704x480/640x480/640x360/352x288/352x240
H.264 : 2592x1944/2560x1440/1920x1080/704x576/704x480/640x480/640x360/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/640x480/768x432/704x576/704x480/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression No
Special Feature
Dynamic ROI(Region of Interest)
Smart LBR
I/O & Event
Audio In / Out No
Alarm In / Out No
Mic No
Event Trigger
Motion Alarm
Temperature Critical
Illegal Login
Schedule
Event Notification
FTP
E-Mail
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
No
SD Card Socket No
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 7.1W
  2. PoE Max 8.5W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model VD2
Housing
  1. Outdoor
  2. Turret
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
122mm
Weight
0.85kg

Compatible Accessories

Bracket Matching
