NVF2-45-R
DWC-PPVF5Di1TW

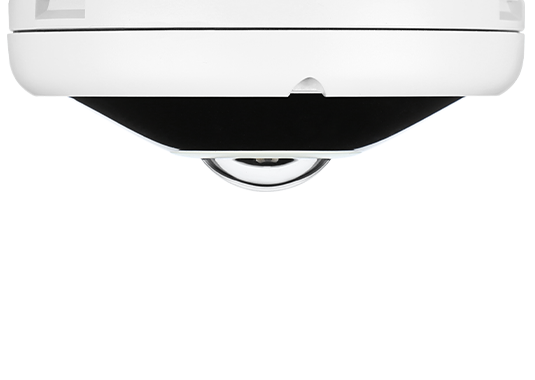

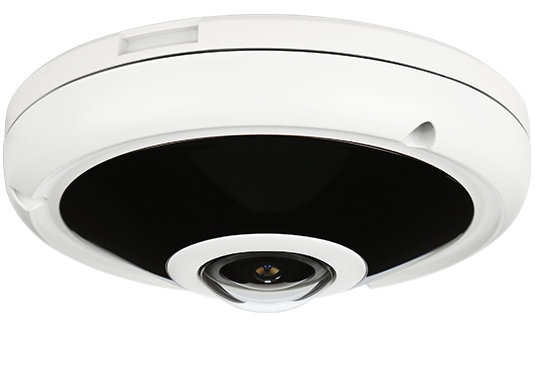

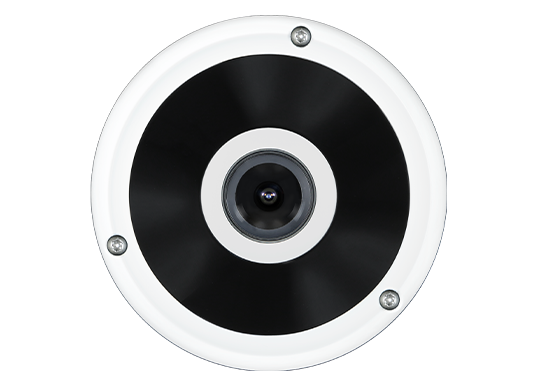

5M IP IR Fisheye Dome
5 MP
Image Resolution
H3IR
IR Leds
IP66 rated
Compliance

Key Feature

  • 5MP 360-degree camera
  • 1/1.8" high sensitivity sensor
  • Maximum resolution 2952 (horizontal) X 1944 (vertical) / 30fps
  • Horizontal angle of view 180 degrees / 180-degree fisheye lens
  • Day & Night (ICR) / IR reach distance 17 meters
  • Backlight compensation (WDR) / 3DNR
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP66/IK09

Specifications

PDF
Video
Image Sensor
  1. 1/1.8”
  2. 6.4M
  3. CMOS
Channels
1
Total Pixel 3096(H) X 2080(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
0.39Lux
0Lux with IR (F2.5)
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
1.55mm
Aperture
F2.5
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D:185°, H:185°, V:185°
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) No
Dynamic Range 120dB or above
LEDs H3IR
LED Distance 55ft(17m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2048x1536/1600x1200/640x480/640x360/384x288/352x240/320x240
H.264 : 2592x1944/2048x1536/1600x1200/640x480/640x360/384x288/352x240/320x240
MJPEG : 1600x1200/1280x1024/1280x960/1152x864/1024x768/800x600/640x480/480x360/384x288/320x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 7.5W
  2. PoE Max 8.7W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK09
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model VF2
Housing
  1. Outdoor
  2. Dome
    Fisheye
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
48mm
Weight
0.5kg

Compatible Accessories

Bracket Matching
