Network Cameras
NVF2-512-R
DWC-PPVF9Di2TW

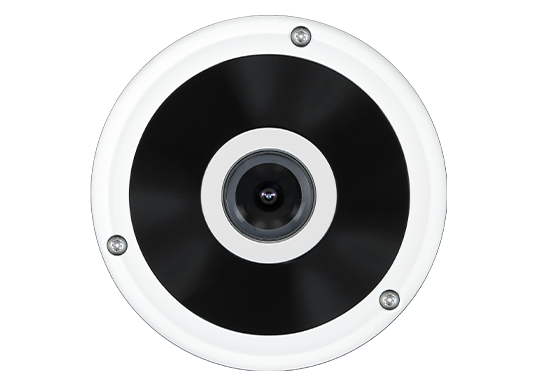

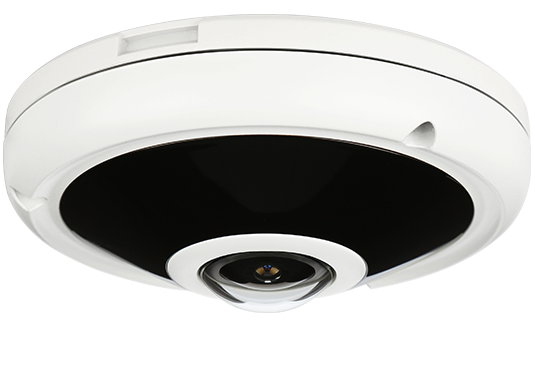

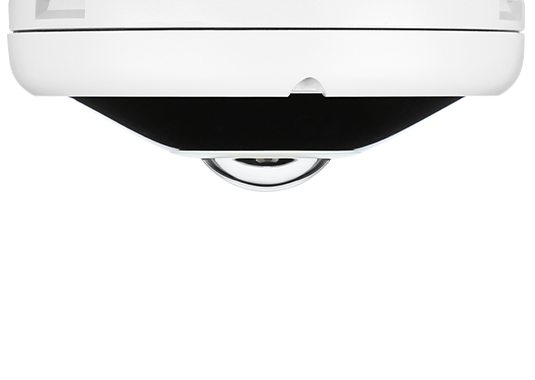

12M IP IR Fisheye Dome
12 MP
Image Resolution
H3IR
IR Leds
IP66 rated
Compliance

Key Feature

  • 12MP 360-degree Camera
  • 1/1.7" High Sensitivity Sensor
  • Maximum Resolution 3000 (Horizontal) X 3000 (Vertical) / 30fps
  • Horizontal Field of View 180 degrees / 180-degree Fisheye Lens
  • Day & Night(ICR)/Night Vision up to 17 meters
  • Backlight Compensation (WDR)/3DNR
  • SD/SDHC/SDXC Memory Slot
  • PoE IEEE 802.3af/Class3
  • IP66/IK09

Specifications

PDF
Video
Image Sensor
  1. 1/1.7“
  2. 12.76M
  3. CMOS
Channels
1
Total Pixel 4168(H) X 3062(V)
Max Resolution 3008(H) X 3000(V)
MIN. Illumination
COLOR: 0.3Lux
BW: 0Lux with IR
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.1mm
Aperture
F2.2
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
:185°, H:185°, V:185°
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) D-WDR
Dynamic Range 120dB or above
LEDs H3IR
LED Distance 55ft(17m)
Privacy Zone Yes
Function
Motion-Detection
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 3008x3000/2800x2800/1600x1600/640x640/320x320
H.264 : 3008x3000/2800x2800/1600x1600/640x640/320x320
MJPEG : 1440x1440/1280x1280/640x640/320x320
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~25Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45(1000Base-T(1Gbps))
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 8.5W
  2. PoE Max 10W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK09
IP Rating IP66
Other Certification
FCC
CE
ROHS
KC
Mechanical
Housing Model VF2
Housing
  1. Outdoor
  2. Dome
    Fisheye
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
48mm
Weight
0.5kg

Compatible Accessories

Bracket Matching
