Network Cameras
NBM8-710-R

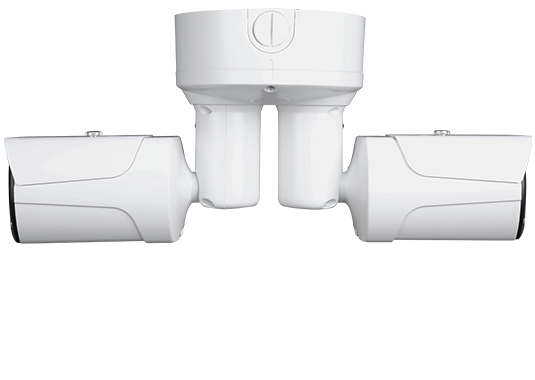

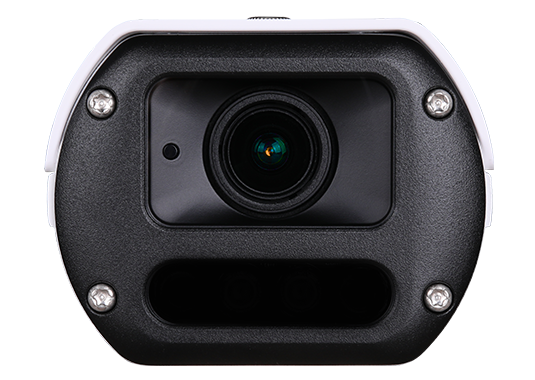

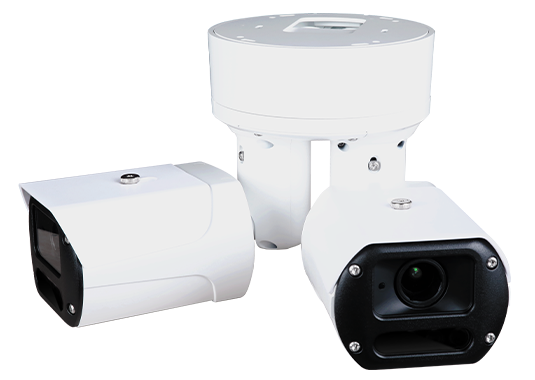

AI Total 10M Dual IP MFZ IR BULLET
Edge based
AI camera
5MP DUAL
MAX 10MP
5X
Optical Zoom

Key Feature

  • 5MP 2-Channel AI Camera
  • 1-Channel Intelligent Video Analysis Event Support (Line/Intrusion/Queue..)
  • Maximum Resolution 2592 (Horizontal) X 1944 (Vertical) / Up to 15fps Simultaneously for 2 Channels
  • Horizontal Field of View 98 degrees (Wide) ~ 32 degrees (Zoom) / Optical 5x
  • Day & Night (ICR) / IR Visible Distance 34 meters
  • Backlight Compensation (WDR)
  • SD/SDHC/SDXC Memory Slot
  • PoE IEEE 802.3at/Class4
  • IP67/IK10
  • Built-in Heater
  • Built-in Microphone/Speaker/Junction Box

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.17M(STV2)
  3. CMOS
Channels
2
Total Pixel 2608(H) X 1984(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
COLOR: 0.04Lux
BW: 0Lux with IR
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:39.4°~125.5°, H:31.6°~98.3°, V:23.5°~70.8°
Pan / Tilt / Zoom
Zoom : X5 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H4IR+H4IR
LED Distance 110ft(34m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
VCA Pro AI
Intrusion Detection
Zones&lines
Tamper Detection
Appear Filter
Disappear Filter
Dwell Filter
Enter Filter
Exit Filter
Stopped Filter
Counting
Counting Lines
Object Color
Direction Filter
Logical Rules
Tailgating Filter
DL People Tracker
DL Object Tracker
Metadata
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240(2ch)
H.264 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240(2ch)
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240(2ch)
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~25Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out Choose MIC or 1 Line Input[1.0Vrms, 3K ohm] / 1 Line Output & Speaker
Alarm In / Out 1 Line/1 Line
Mic Yes
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3at
  4. Class4
Power consumption
  1. DC Max 17.4W
  2. PoE Max 20.6W
Environmental
Operating Temperature -40℃ ~ 50℃
Cold Start -40℃
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model BM8
Housing
  1. Outdoor
  2. Bullet
    Multi-Sensor
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
325.9mm
171.1mm
Weight
3.2kg

Compatible Accessories

Download

  • NBM8-710-R

    AI Total 10M Dual IP MFZ IR BULLET

    Type File name Last update Download
    Drawing BM8 DRAWING.PDF 2023-10-12
    Product Image BM8.PNG 2023-03-13
