Network Cameras
NVM8-710-R

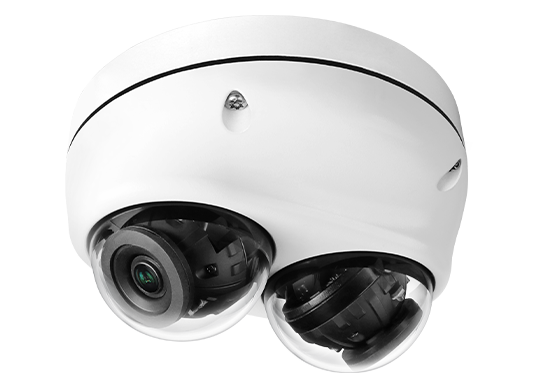

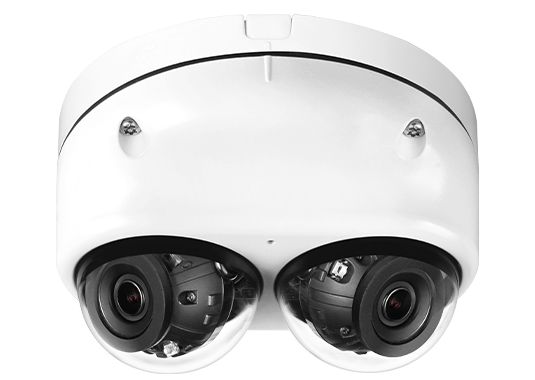

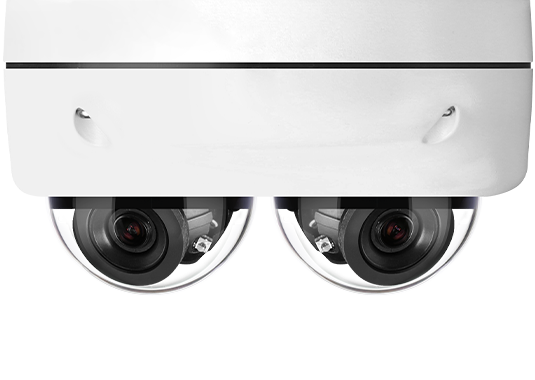

AI Total 10M Dual IP IR Dome
Edge based
AI Camera
5M DUAL x2
MAX 10MP
Compact Size

Key Feature

  • 5MP 2-Channel AI Camera
  • 1 Channel Supports Intelligent Video Analysis Events (Line Crossing, Intrusion, Queue Management, etc.)
  • Maximum Resolution 2592 (Horizontal) X 1944 (Vertical) per Channel / Simultaneous 2-Channel Operation at Maximum 15fps
  • Horizontal Field of View 102 degrees (2.8mm), 82 degrees (4.0mm), 52 degrees (6.0mm)
  • Fixed Lens Options
  • Day & Night(ICR)/IR Visibility up to 18 meters
  • Backlight Compensation (WDR)
  • SD/SDHC/SDXC Memory Slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK10
  • Built-in Microphone

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.69M
  3. CMOS
Channels
2
Total Pixel 2704(H) X 2104(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
COLOR: 2.8mm : 0.13Lux, etc : 0.16Lux
BW: 0Lux with IR
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.8mm
4.0mm
6.0mm
8.0mm
Aperture
2.8 mm, F1.8 | 4.0mm, F2.0 | 6.0mm, F2.0 | 8.0mm, F2.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D : 125.5°, H : 102.4°, V : 77.4° (2.8mm) /D : 106.6°, H : 82.3°, V : 58.8° (4mm) /D : 69.4°, H : 51.9°, V : 37.6° (6mm)/ D : 47.9°, H : 37.8°, V : 28.2° (8mm)
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR+H2IR
LED Distance 60ft(18m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
VCA Pro AI
Intrusion Detection
Zones&lines
Tamper Detection
Appear Filter
Disappear Filter
Dwell Filter
Enter Filter
Exit Filter
Stopped Filter
Counting
Counting Lines
Object Color
Direction Filter
Logical Rules
Tailgating Filter
DL People Tracker
DL Object Tracker
Metadata
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240(2ch)
H.264 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240(x2ch)
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240(x2ch)
Intelligent Codec Yes
Multiple Profile Streaming Performance
Dual Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~25Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out Mic /1 Line Output
Alarm In / Out 1 Line/1 Line
Mic Yes
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP, UDP, Auto IP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security
HTTPS(SSL), IP Filtering, 802.1x, Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 9.9W
  2. PoE Max 11.6W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
KC
Mechanical
Housing Model VM8
Housing
  1. Outdoor
  2. Dome
    Multi-Sensor
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
139mm
79.5mm
Weight
0.68kg

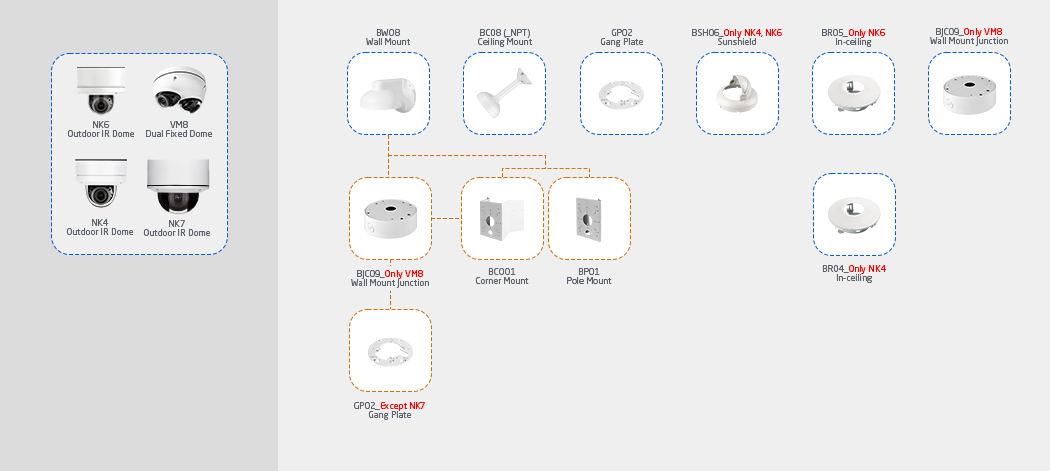

Compatible Accessories

Bracket Matching
